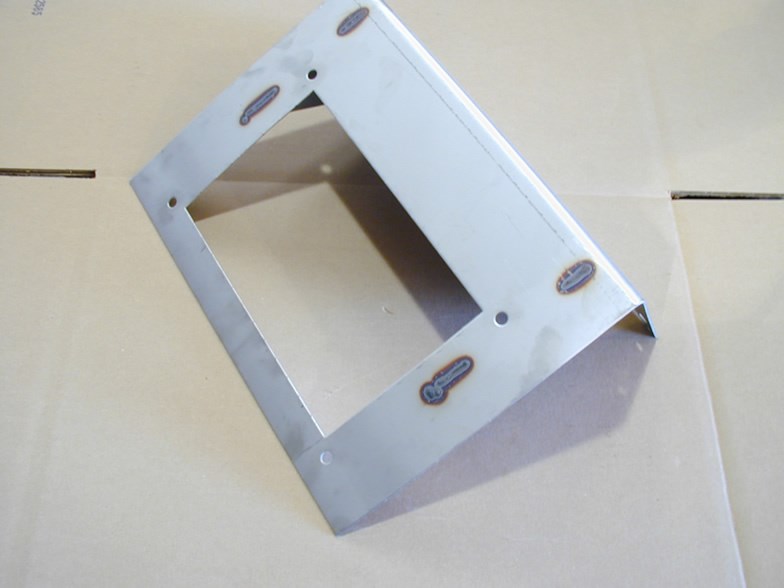

PART# 711000

CONTROL BOX MOUNTING BRACKET (STAINLESS STEEL ) FOR AQ1 /AQ2
CONTROL BOX WITHOUT TIV /AIV

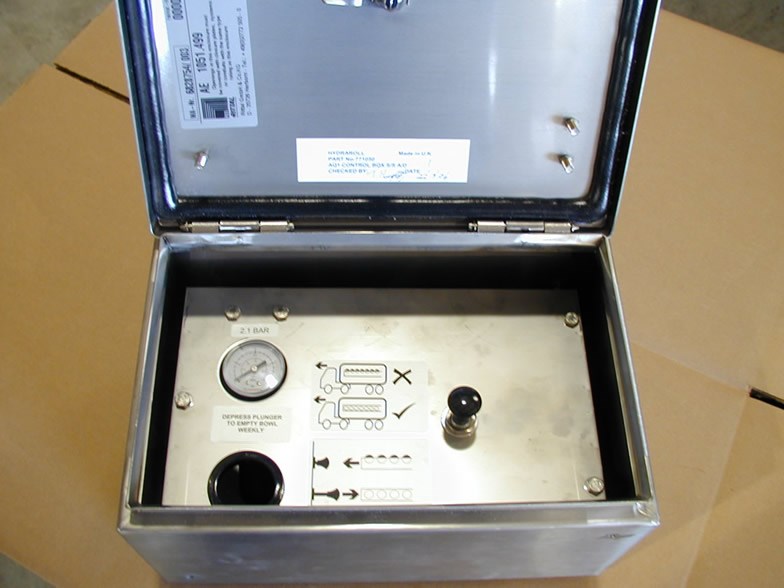

PART# 771050

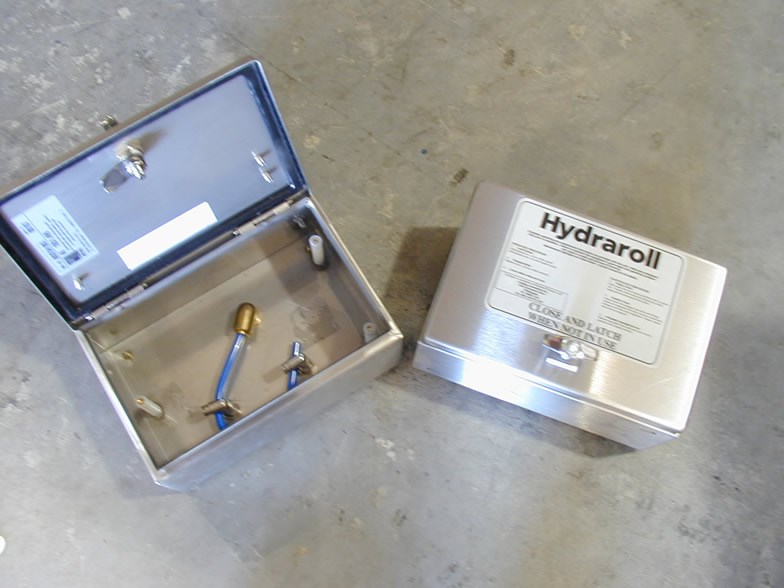

AQ1; STAINLESS STEELCONTROL BOX COMPLETE

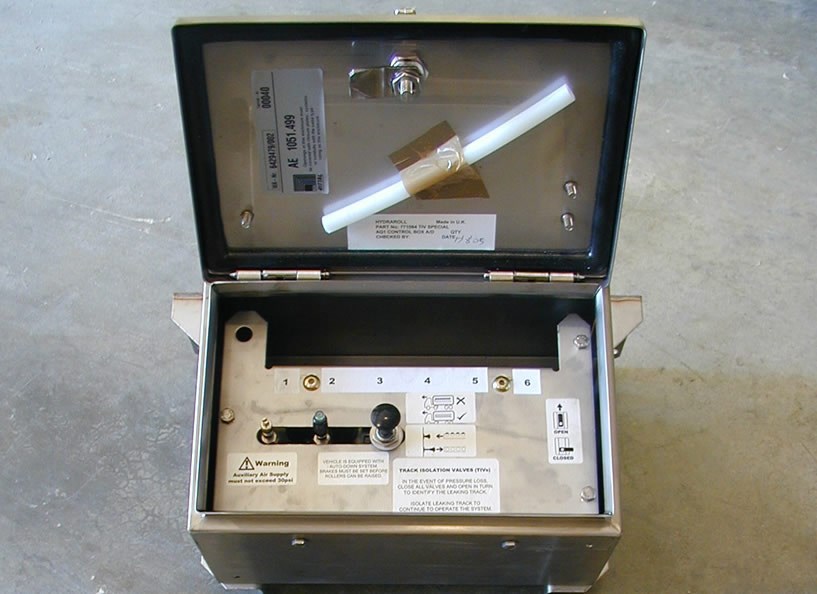

PART# 771064

AQ1;STAINLESS STEEL CONTROL BOX COMPLETE WITH TIV AND AIV

PART# 771049

AQ1;STAINLESS STEEL CONTROL BOX ENCLOSURE.(INCLUDES BULKHEAD FITTINGS)

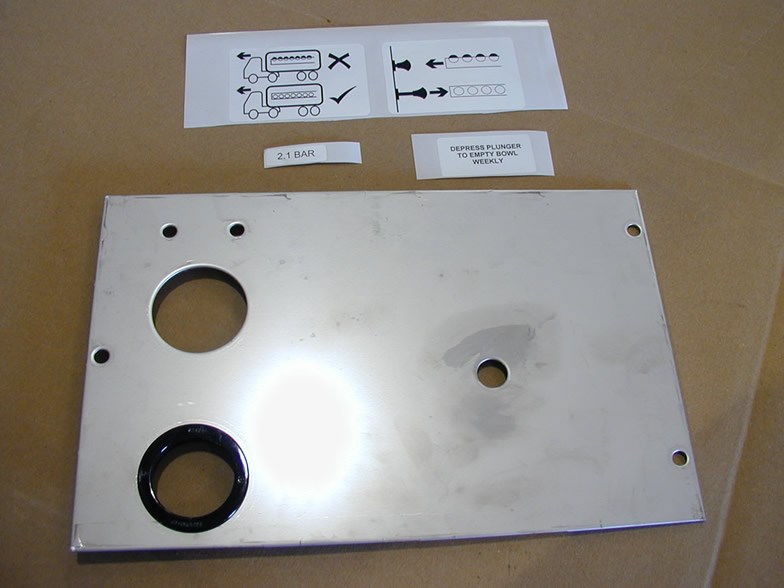

PART# 771047

AQ1; STAINLESS STEEL FACEPLATE

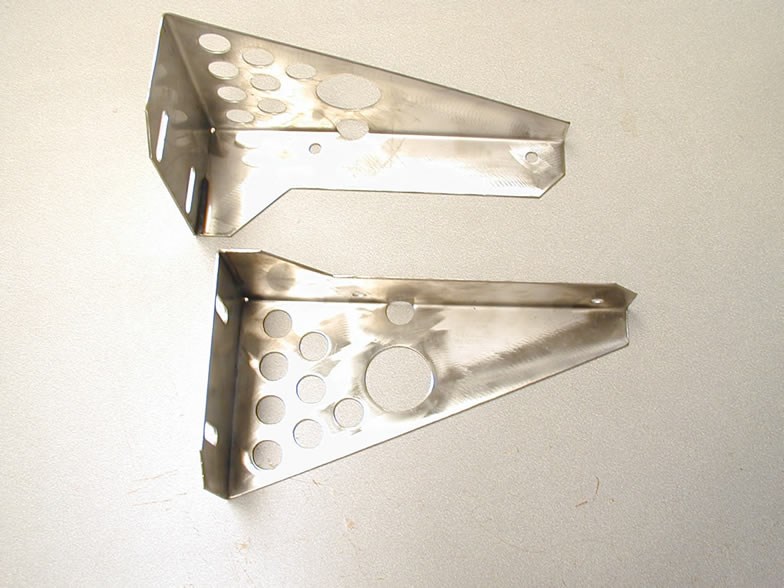

PART# 711009

CONTROIL BOX MOUNTING BRACKET(STAINLESS STEEL 2 PIECE) FOR AQ1/AQ2 BOX WITH TIV/AIV

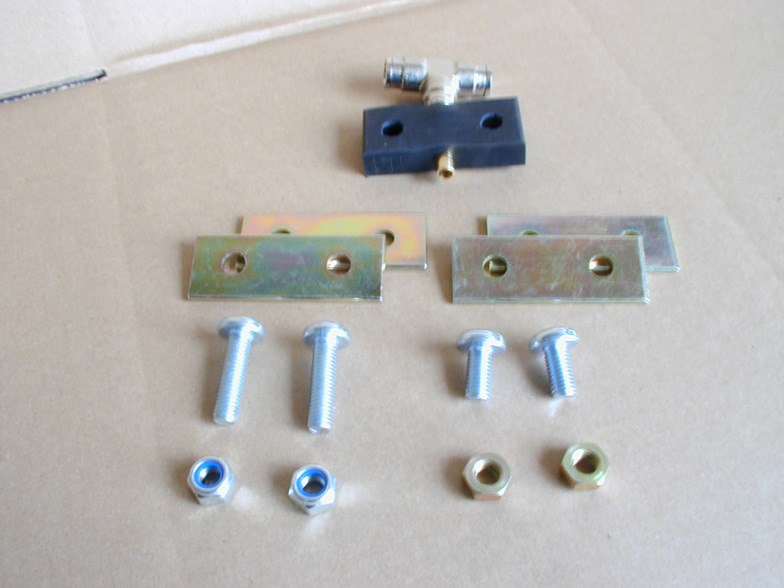

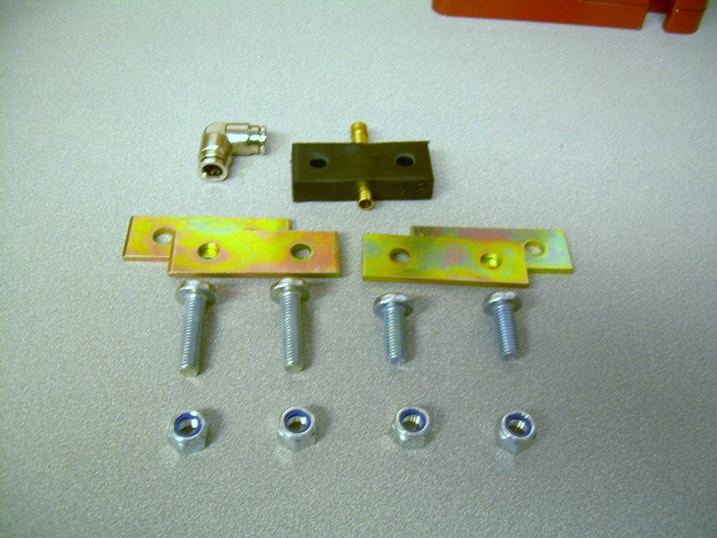

PART# 762001

2.5” HYDRAROLL AIR BAG CLAMP KIT W/ 5/16" TEE

PART# 762004

2.5” HYDRAROLL AIR BAG CLAMP KIT W/ 5/16" ELBOW

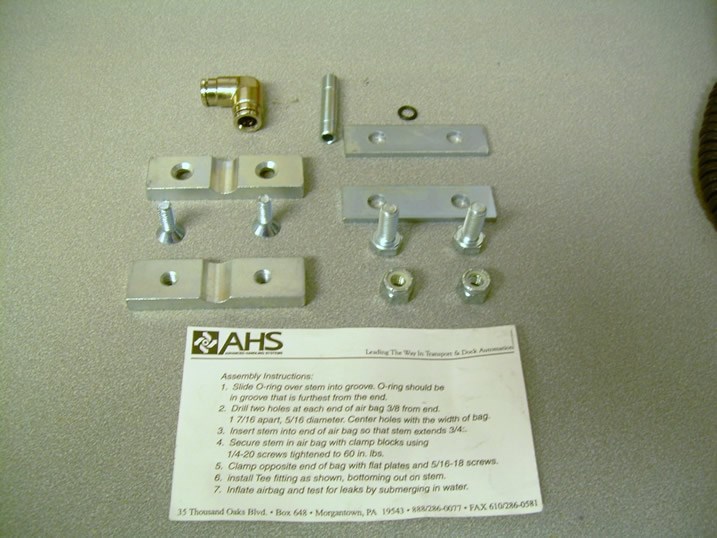

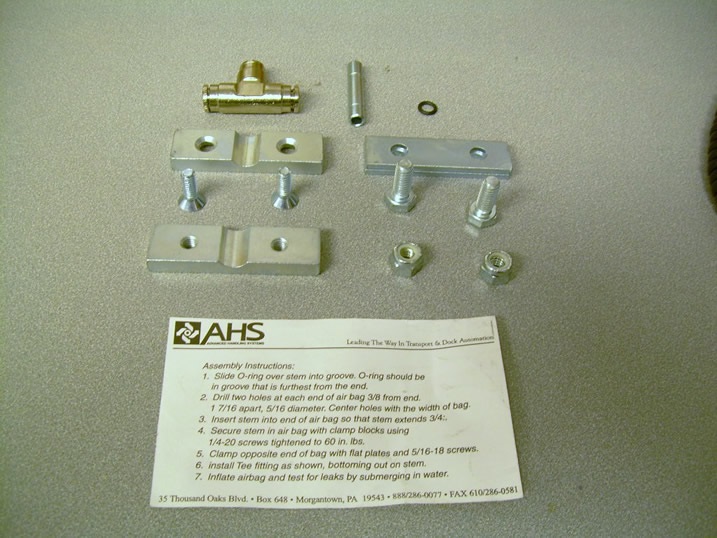

PART# 762013

2.5” AHS AIR BAG CLAMP KIT W/ 5/16” TEE

PART# 762014

2.5” AHS AIR BAG CLAMP KIT W/ 5/16” ELBOW

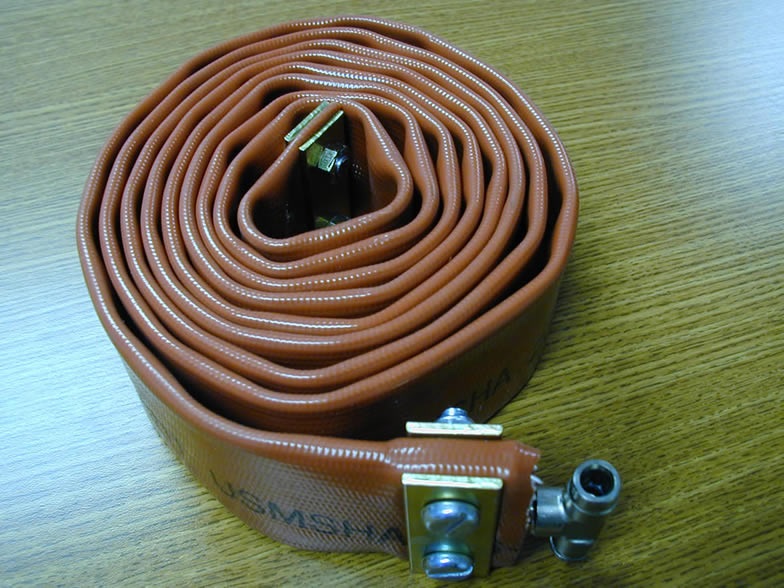

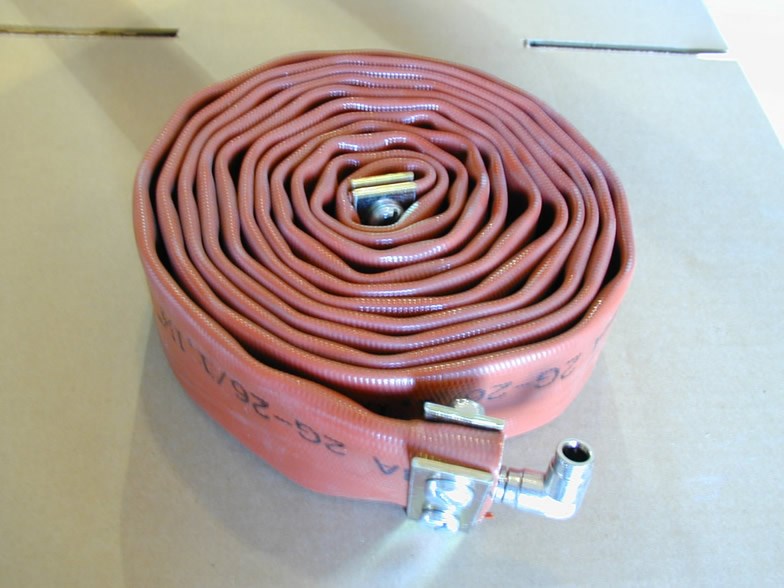

PART# 760008

HYDRAROLL – AHS AIRBAG ASSEMBLY COMPLETE.FOR 10’6” MODULE WITH 5/16” PUSH IN TEE

PART# 760057

HYDRAROLL – AHS AIRBAG ASSEMBLY COMPLETE.FOR 13’ MODULE WITH 5/16” PUSH IN ELBOW

PART# 760018

HYDRAROLL – AHS AIRBAG ASSEMBLY COMPLETE FOR 13’2” MODULE WITH 5/16” PUSH IN ELBOW

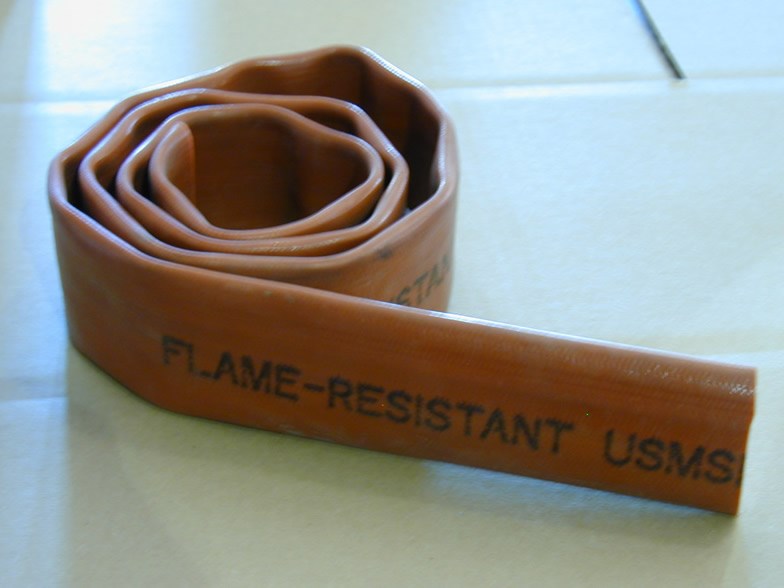

PART# 760006

HYDRAROLL – AHS AIR BAG; 2.5" FLAT; RED; ROLL FORM; (300 FT ROLLS) FOR IN HOUSE AIRBAG ASSEMBLY

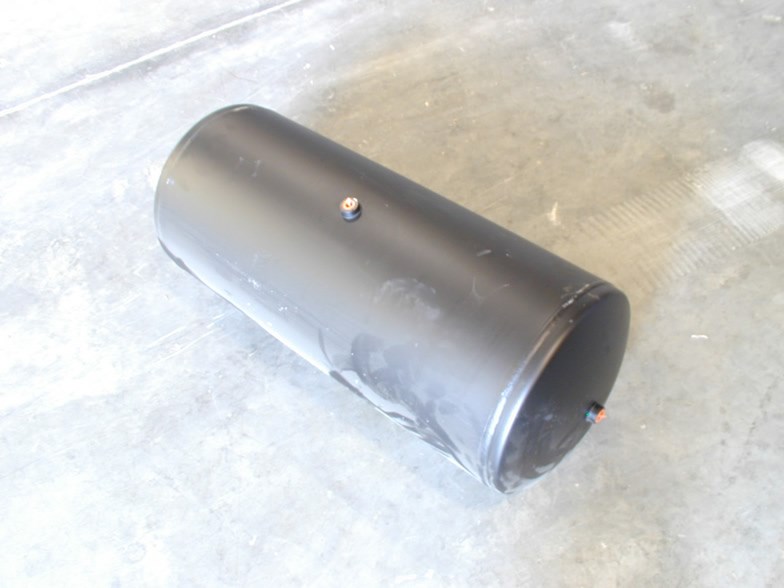

PART# 770002

AIRTANK WITH 3/8” FPT ENDPORTS AND 1/4” FPT DRAIN PORT

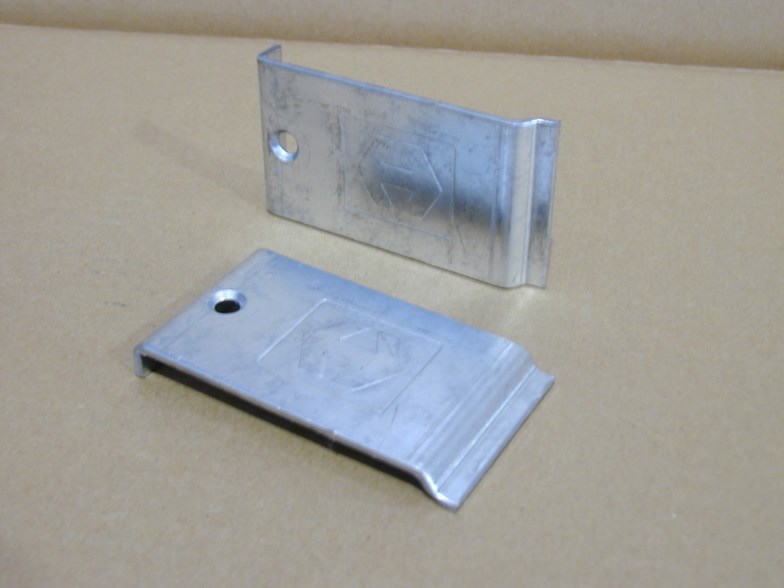

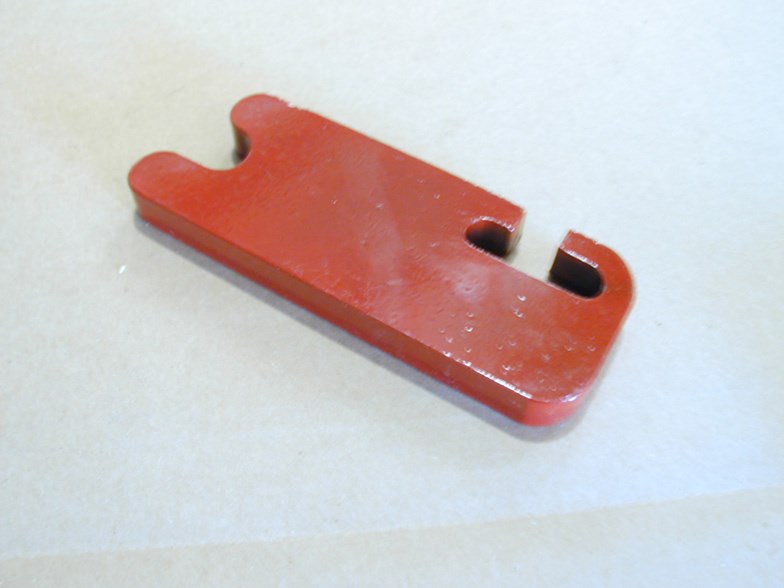

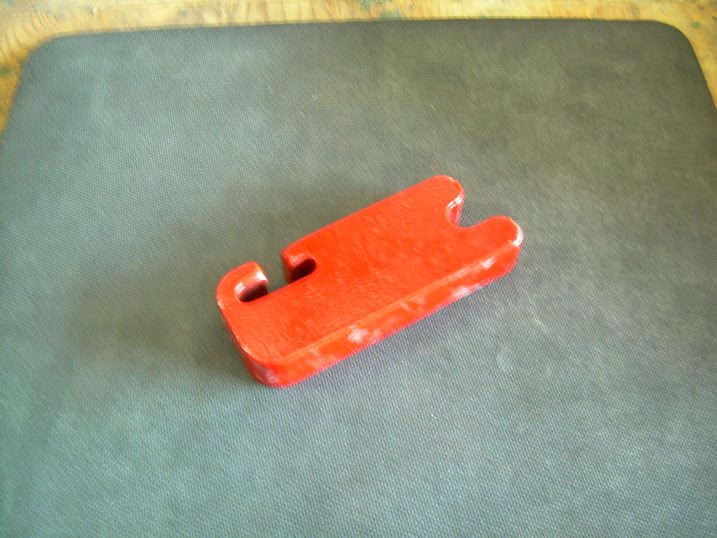

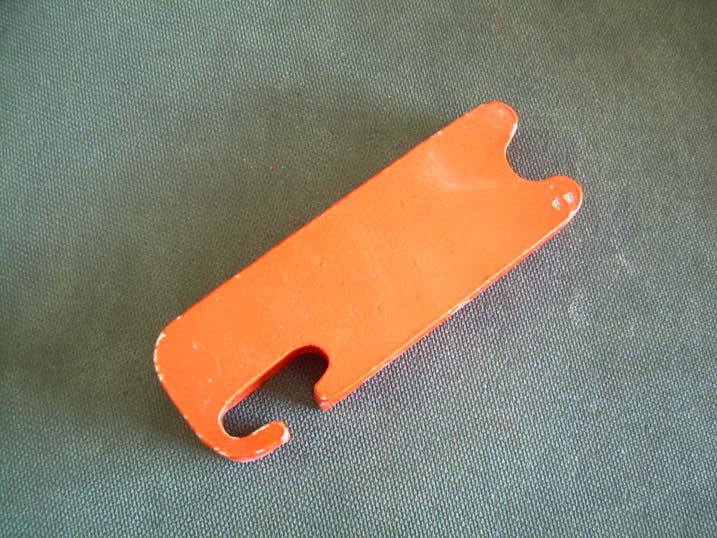

PART# 710015

5/8” THICK “WINGED” PALLET STOP REPLACEMENT BLADE

PART# 710004

5/8” THICK “STANDARD” PALLET STOP REPLACEMENT BLADE

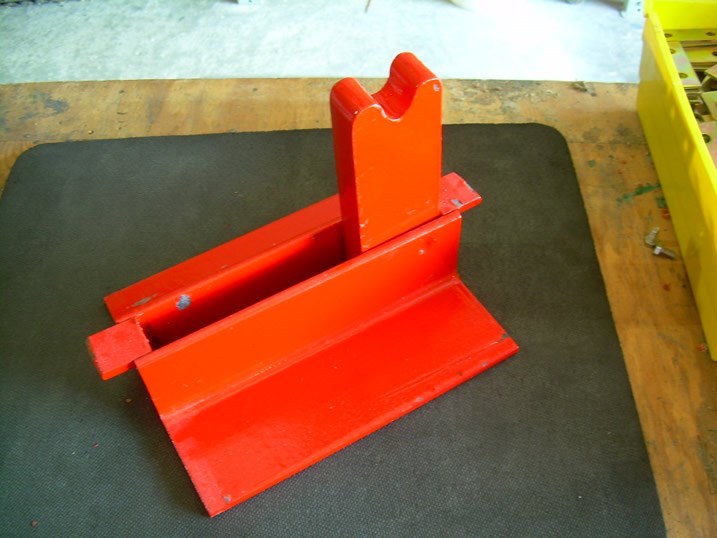

PART# 710005

PALLET STOP ASSEMBLY WITH 1” THICK “STANDARD” BLADE

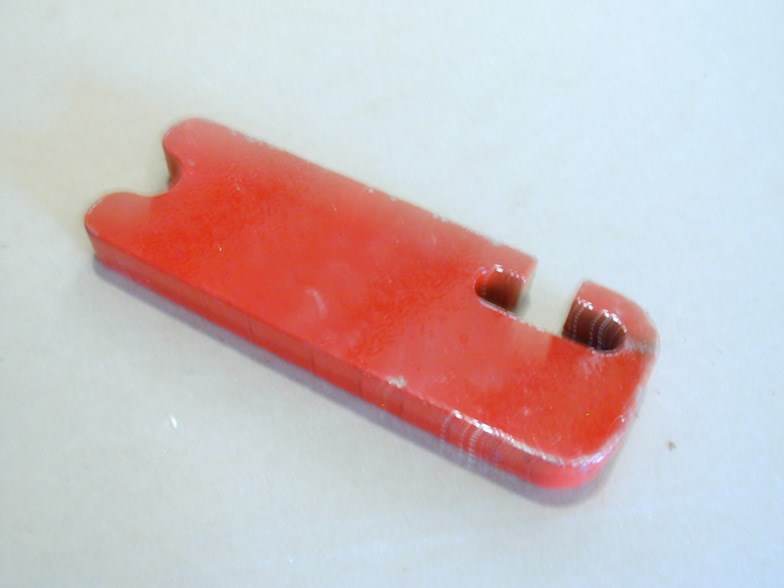

PART# 710007

1” THICK “STANDARD” PALLET STOP REPLACEMENT BLADE

PART# 710011

1” THICK “WINGED” PALLET STOP REPLACEMENT BLADE

PART# 742005

MK4,SERIES 4,ROLLER CRADLE ASSEMBLY 4” PITCH, 15 ROLLERS,INLET ENDIS A MATE TO TOP PLATE PART# 741005

PART# 742003

MK4,SERIES 4,ROLLER CRADLE ASSEMBLY 4” PITCH, 16 ROLLERS,CLAMP END IS A MATE TO TOP PLATE PART# 741015

PART# 742006

MK4,SERIES 4,ROLLER CRADLE ASSEMBLY 6” PITCH, 10 ROLLERS,INLET ENDIS A MATE TO TOP PLATE PART# 741006

PART# 742007

MK4,SERIES 4,ROLLER CRADLE ASSEMBLY 6” PITCH, 11 ROLLERS,CLAMP END IS A MATE TO TOP PLATE PART# 741007

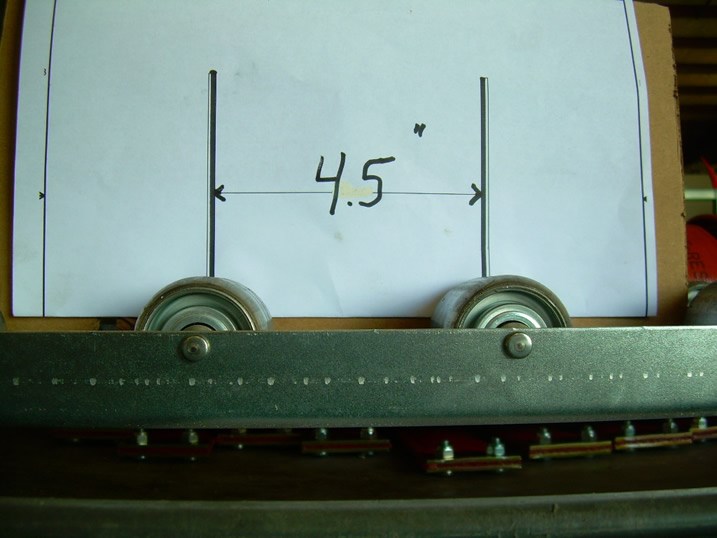

PART# 742020

MK4,SERIES 5,ROLLER CRADLE ASSEMBLY 4.5” PITCH, 14 ROLLERS, IS A MATE TO TOP PLATE PART# 741044

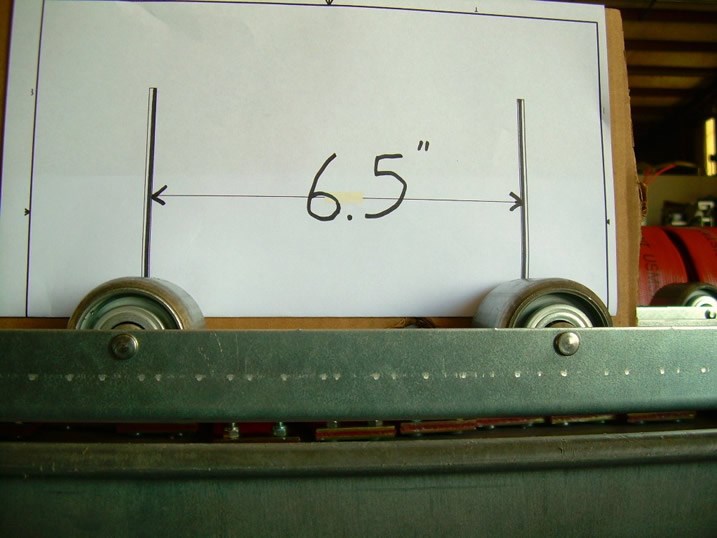

PART# 742021

MK4,SERIES 5,ROLLER CRADLE ASSEMBLY 6.5” PITCH, 10 ROLLERS, IS A MATE TO TOP PLATE PART# 741045

PART# 742023

MK4,SERIES 5,ROLLER CRADLE ASSEMBLY,6.5” PITCH, 5 ROLLERS,FOR THE CLAMP END OF A 13’2” LONG MODULE IS A MATE TO TOP PLATE PART# 741047

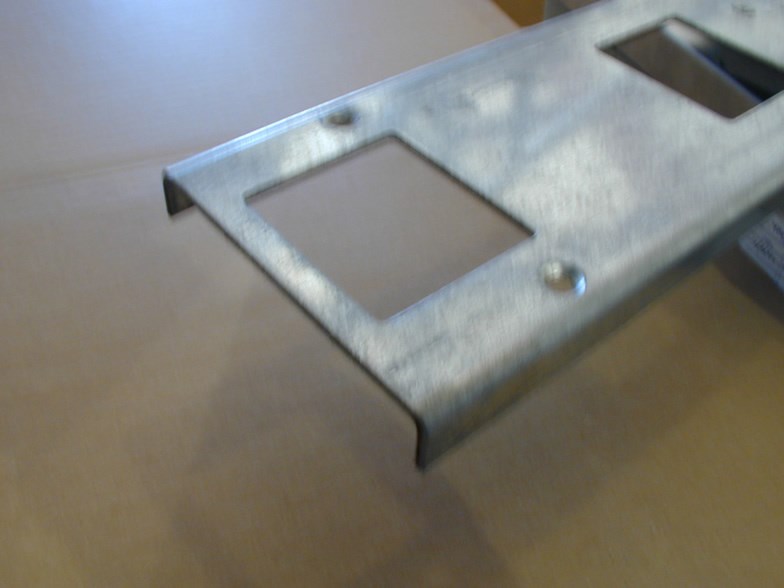

PART# 741005

MK4,SERIES 4,TOP PLATE,(FOLDED) 4” PITCH,15 ROLLER OPENINGS, INLET END, 59.5” LONG. IS A MATE TO ROLLER CRADLE PART# 742005

PART# 741006

MK4,SERIES 4,TOP PLATE,(FOLDED) 6” PITCH,10 ROLLER OPENINGS, CLAMP END, 59.5” LONG. IS A MATE TO ROLLER CRADLE PART# 742006

PART# 741007

MK4,SERIES 4,TOP PLATE,(FOLDED) 6” PITCH,11 ROLLER OPENINGS, CLAMP END, 64” LONG. IS A MATE TO ROLLER CRADLE PART# 742007

PART# 741012

MK4,SERIES 4,TOP PLATE,(FOLDED) LOGO PLATE, NORMALLY COVERS THE INLET END OF THE MODULE.

PART# 741043

MK4,SERIES 5,TOP PLATE,(QUICK RELEASE) LOGO PLATE, NORMALLY COVERS THE INLET END OF THE MODULE

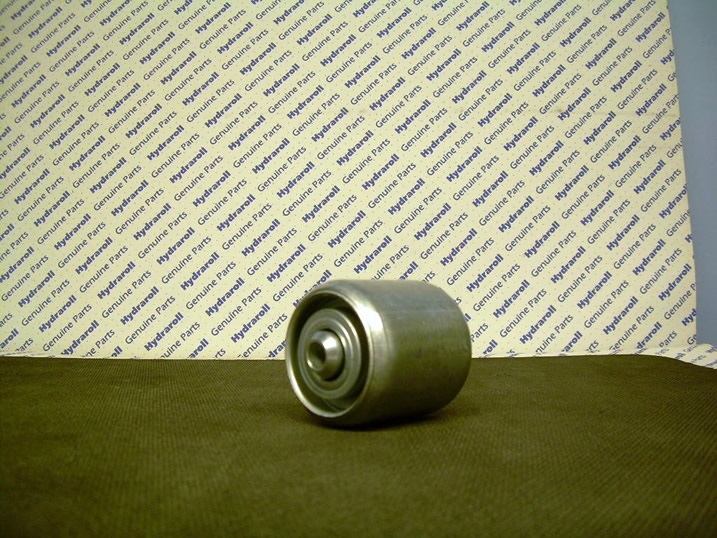

PART# 743002

MK4 REPLACEMENT ROLLER, 2” WIDE , NEEDS ROLLER PIN (AXLE) PT# 743001

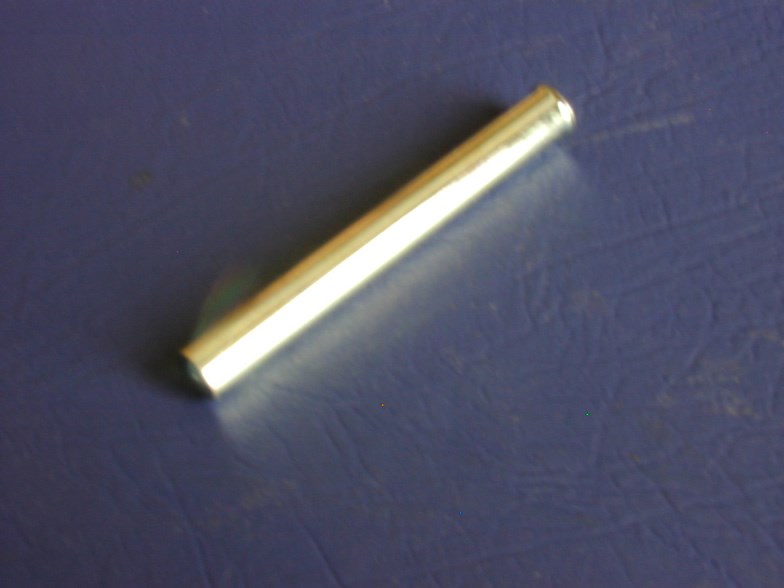

PART# 743001

MK4-MK21 REPLACEMENT ROLLER PIN (AXLE) , USED FOR ROLLER PART# 743002 AND ROLLER PART# 803003

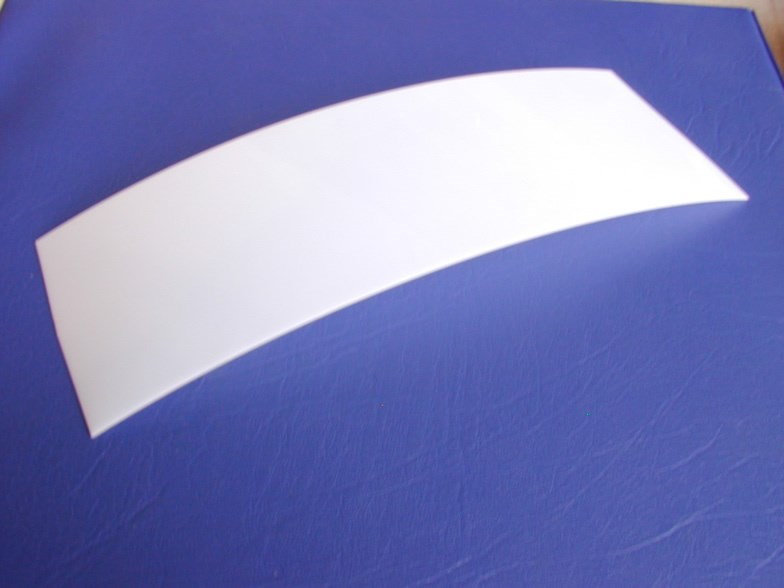

PART# 714007

ACETAL STRIP, MK4-MK21 ,.02” X 2.8125” WIDE.

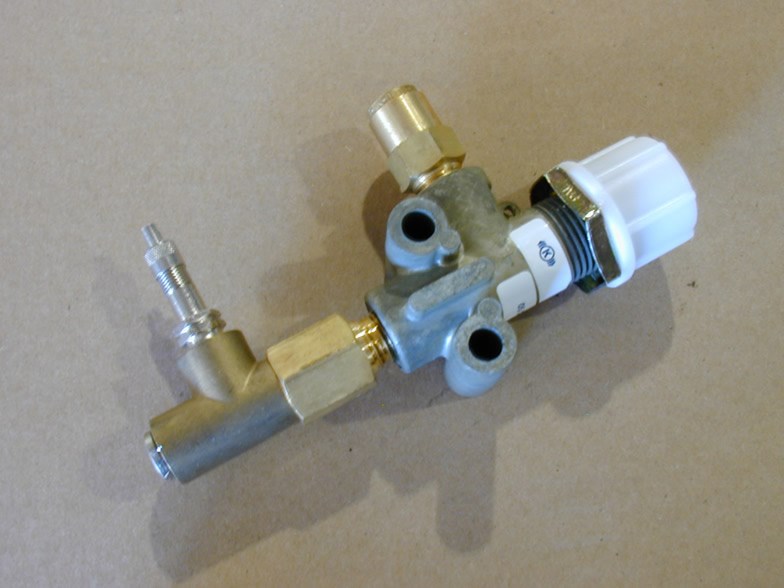

PART# 772016

PRESSURE PROTECTION VALVE, CROSSMEMBER MOUNTED WITH AIV. (REPLACED WITH PART# 772053)

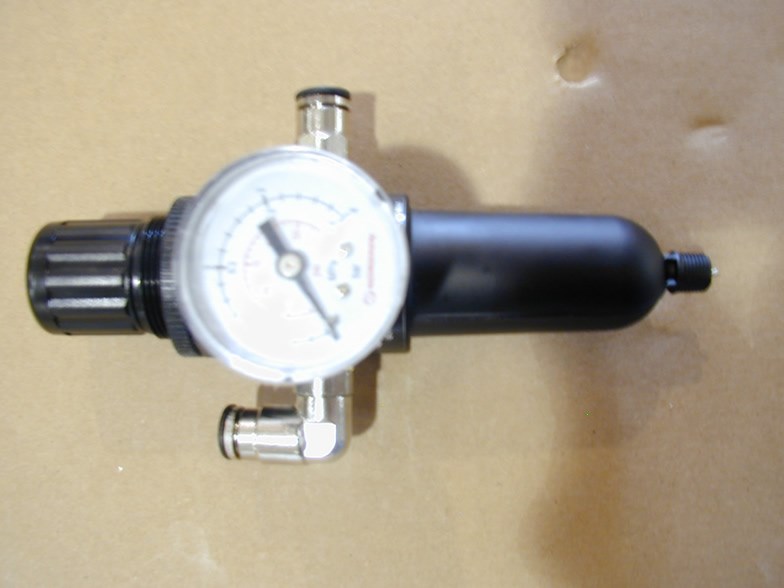

PART# 772017

PNEUMATIC FILTER / REGULATOR REPLACEMENT FOR CONTROL BOX COMES WITH FITTINGS AND MOUNTING BRACKET.

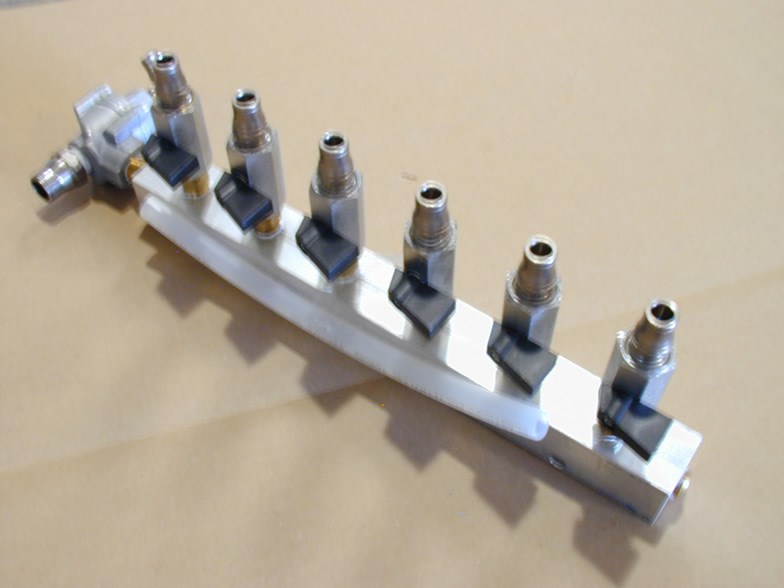

PART# 772018

TIV MANIFOLD ASSEMBLY – COMES WITH QUICK EXHAUST VALVE, BALL VALVES AND FITTINGS AS SHOWN.

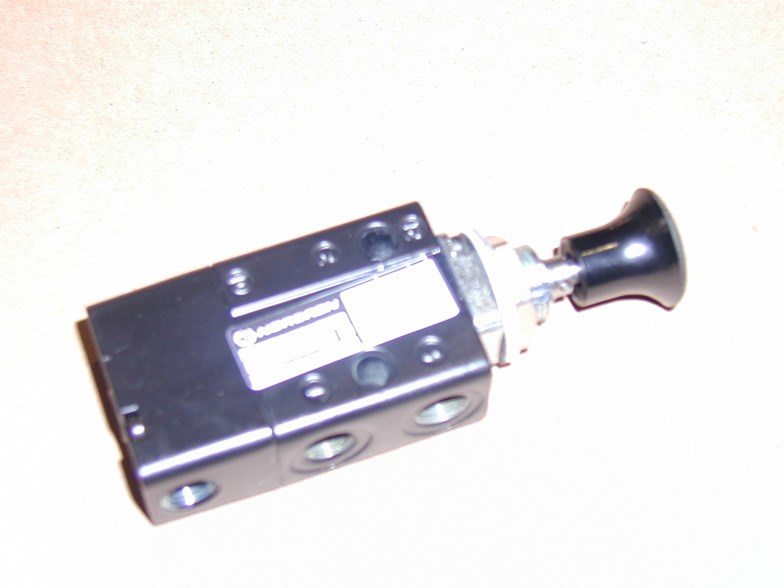

PART# 772024

AUTODOWN CONTROL VALVE REPLACEMENT FOR CONTROL BOX. KNOB IS INCLUDED.

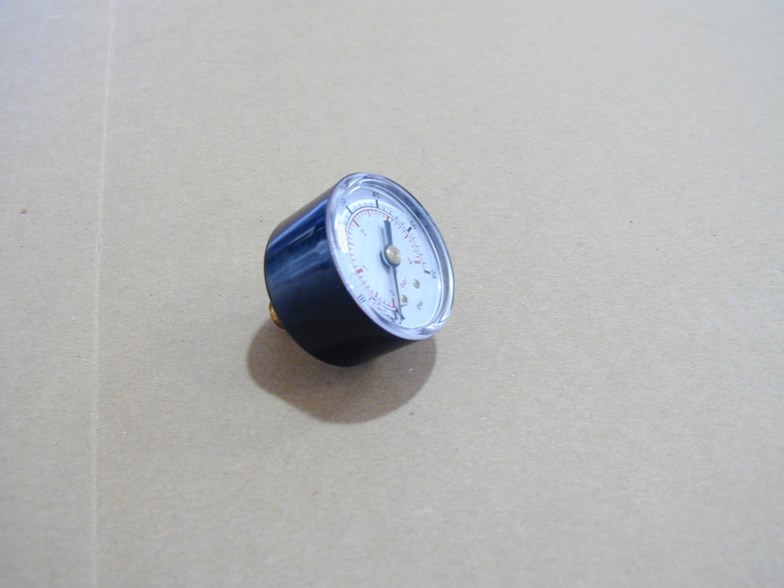

PART# 772008

FILTER REGULATOR GAUGE REPLACEMENT(0-60 PSI,0-4 BAR)

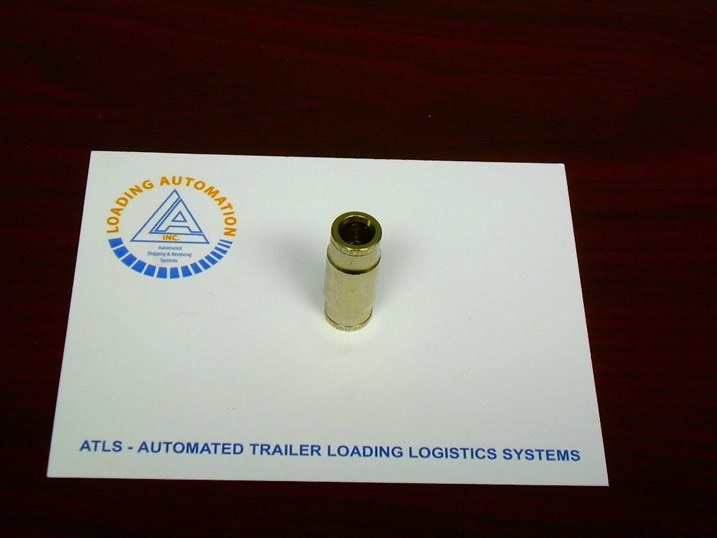

PART# 773007

5/16” OD PUSH IN STRAIGHT COUPLING

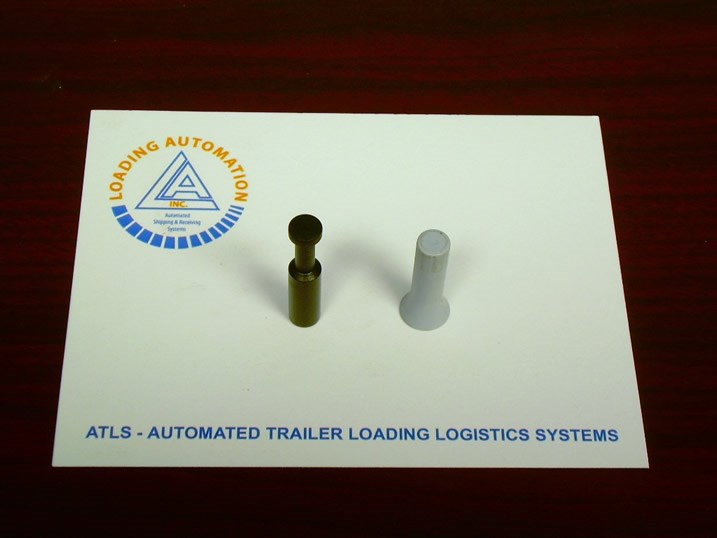

PART# 773009

5/16” OD PUSH IN PLUGS (TWO STYLES SHOWN)

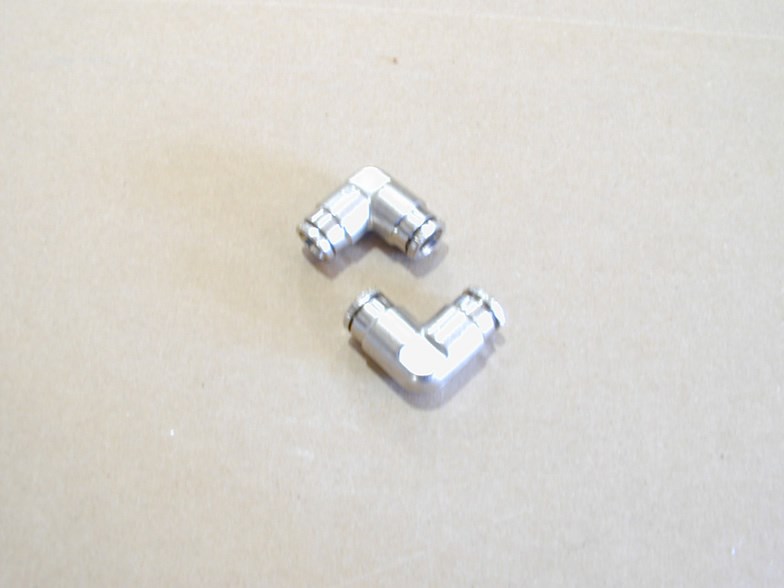

PART# 773010

5/16” OD PUSH IN 90 DEG ELBOW

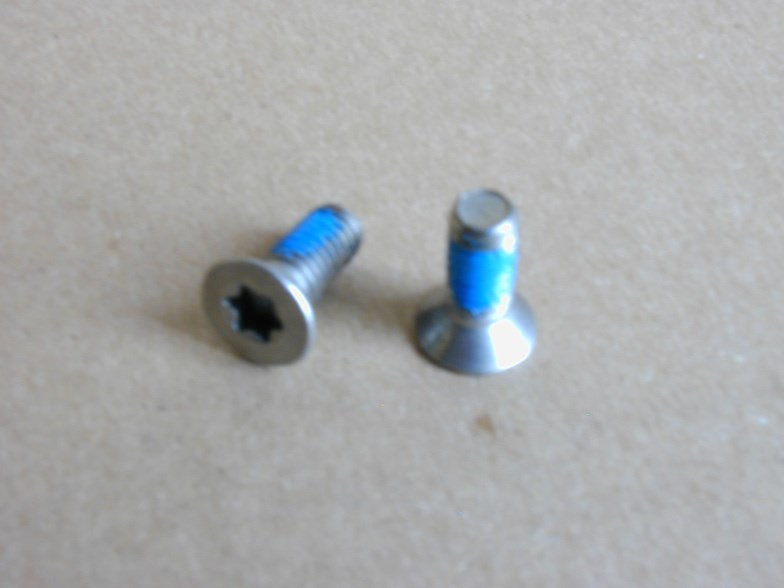

PART# 943003

TOP PLATE SCREW,STAINLESS STEEL, M6 X 15MM TORX HEAD WITH THREAD SEALANT.

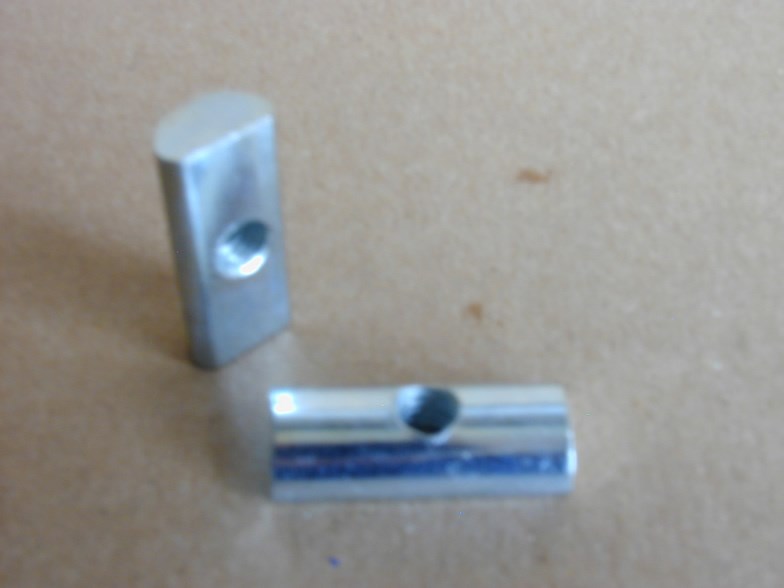

PART# 944004

DROP IN NUTBARS 6MM

COMMONLY USED TERMS & NOTES WHEN ORDERING GENUINE HYDRAROLL AND AHS PARTS.

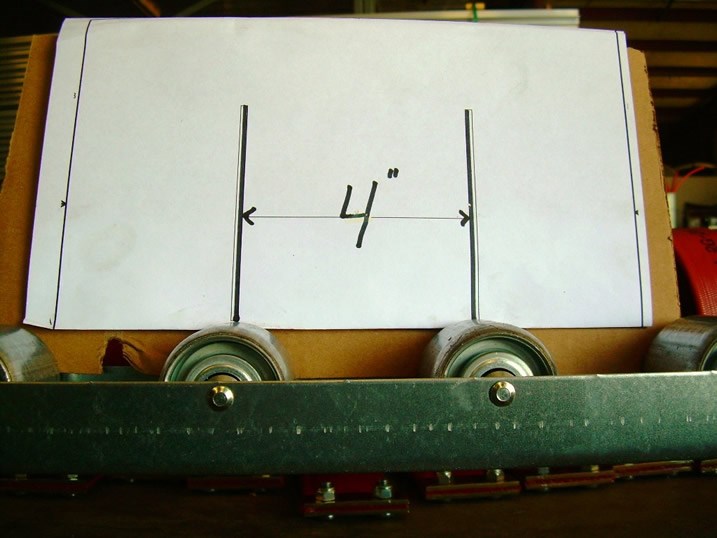

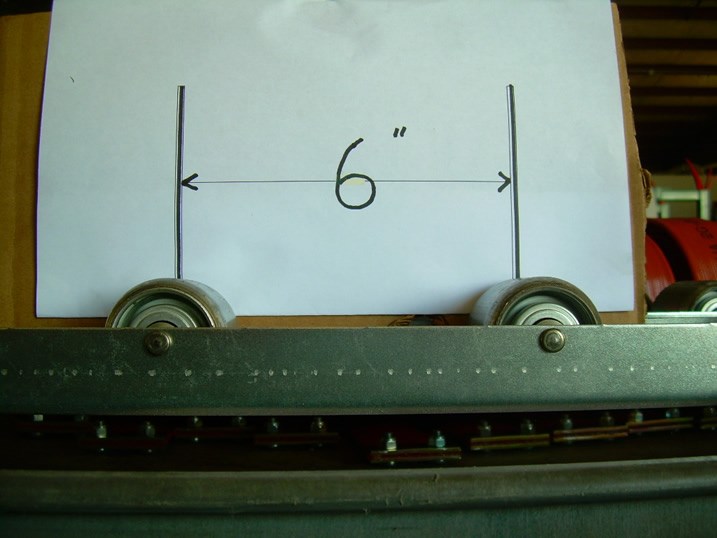

“PITCH” –
MEASUREMENT FROM CENTER OF ONE ROLLER AXLE TO THE NEXT. APPLIES TO ROLLER CRADLE ASSEMBLIES
“CLAMP” OR “CLAMP END” –
END OF MODULE OPPOSITE THE AIR LINE END OF MODULE
AIRBAGS–
TO ORDER AIRBAGS MEASURE THE LENGTH OF THE MAIN CHANNEL THAT YOU REMOVED THE BAG FROM.
“INLET” OR “INLET END”–
END OF MODULE WHERE AIR IS SUPPLIED TO IT.THIS IS OPPOSITE OF THE “CLAMP” END.
